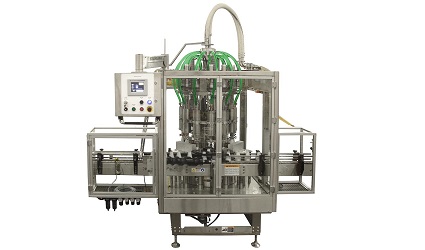

KP-Aerofill AV-600

Volumetric liquid filler - 3, 6, 12, 18 and 24 heads (600 ppm)

Basic Info

  • TECHNOLOGY: Aerosol Filling
  • INDUSTRY: Home Care, Personal Care, Chemicals
  • SEGMENT: Air Care, Other Home Care, Home Insecticides, Laundry Care, Deodorants, Fragrances, Hair Care, Men's Shaving, Skin & Sun Care, Coatings & Sealants, Lubricants, Other Chemicals
CONTACT US
AFTER SALES SERVICE

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)1356
Machine height (mm)2507
Machine length (mm)2672
Machine weight (kg)2455
Technical data
Dial pitch (mm)648
Number of heads12
Tank capacity (l)99999
Product range
Max filling volume (ml)1000
Min filling volume (ml)5
Max product viscosity (cps)15000
Production environment
Hazard ratingNEC Class I, Div. 1, Groups C&D: IECEx
Environment typeExplosive vapors
Performance
Operating modeContinuous
Product changeover15 - 60 min
Size changeover15 - 30 min
Packing range
Max pack diameter (mm)76
Min pack diameter (mm)35
Packaging range
Max pack height (mm)305
Min pack height (mm)51
Packaging features
Packaging materialMetals, Plastics
Packaging ShapeRound

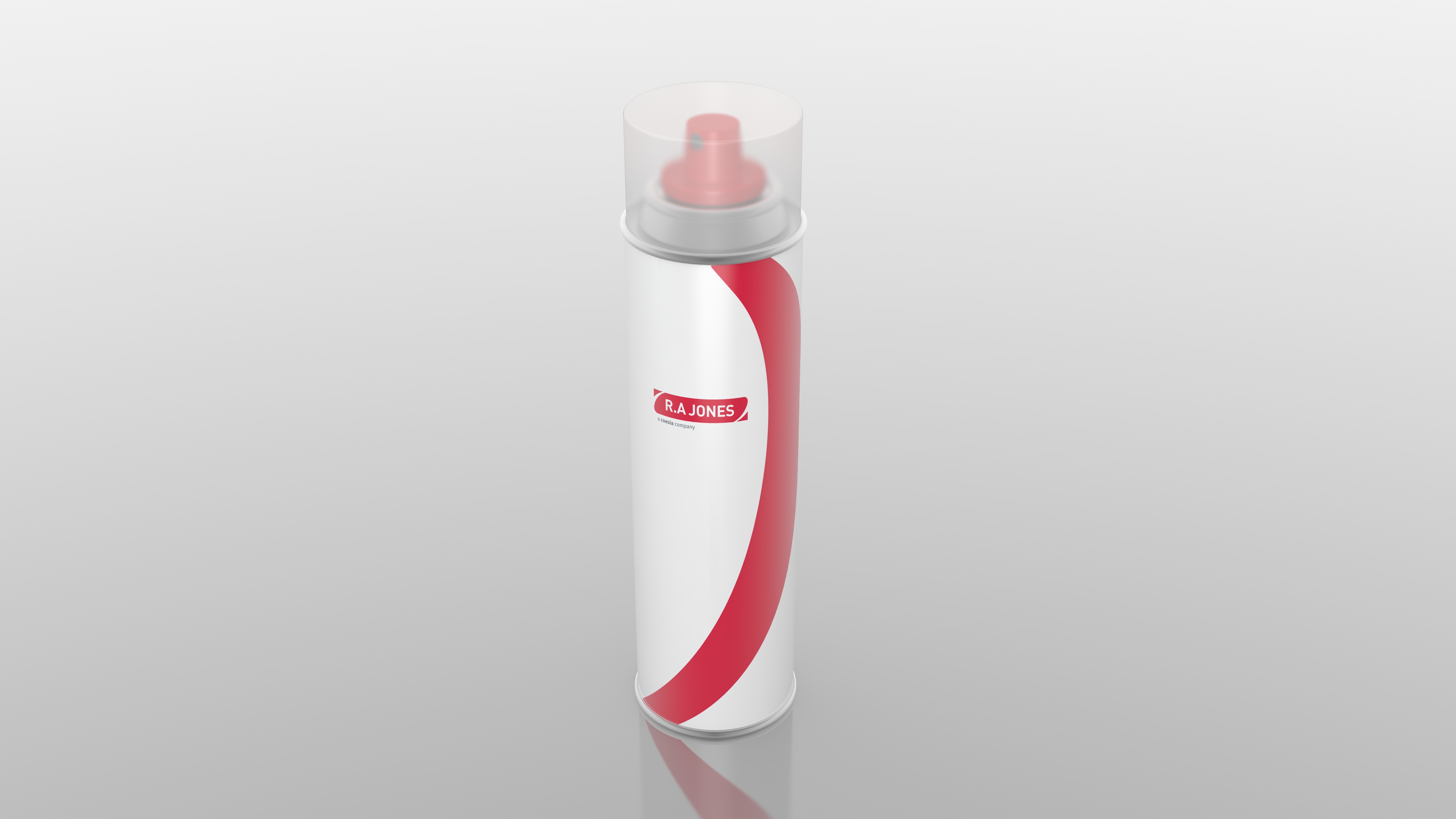

Packaging typeCans
Regulatory requirements
Safety RegulationsNEC Class I, Div. 1, Groups C&D: IECEx
Other technical features
Transport systemRotary
Value proposition
Value propositionPerformance
