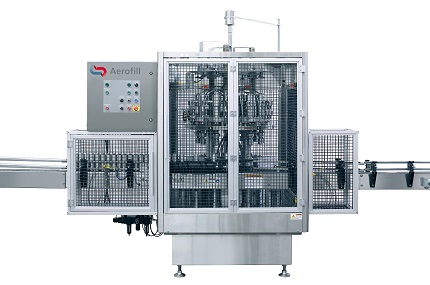

KP-Aerofill AT-600

Rotary through-the-valve filler with 6, 12, 15, 18, 24 or 30 heads (600 ppm)

Basic Info

  • TECHNOLOGY: Aerosol Filling
  • INDUSTRY: Home Care, Personal Care, Food, Dairy, Chemicals
  • SEGMENT: Air Care, Home Insecticides, Laundry Care, Other Home Care, Deodorants, Fragrances, Hair Care, Men's Shaving, Skin & Sun Care, Oils & Fats, Cheese, Other Dairy, Coatings & Sealants, Lubricants, Other Chemicals

Detailed Info

Footprint
Machine depth (mm)1356
Machine height (mm)2413
Machine length (mm)1328
Machine weight (kg)2386
Technical data
Dial pitch (mm)648
Number of heads12
Tank capacity (l)99999
Product range
Max filling volume (ml)1000
Min filling volume (ml)4
Max product viscosity (cps)5000
Production environment
Hazard ratingNEC Class I, Div. 1, Groups C&D; IECEx
Environment typeExplosive vapors
Performance
Operating modeContinuous
Product changeover15 - 30 min
Size changeover10 - 30 min
Packing range
Max pack diameter (mm)76
Min pack diameter (mm)40
Packaging range
Max pack height (mm)311
Min pack height (mm)89
Packaging features
Packaging materialMetals, Plastics
Packaging ShapeRound
Packaging typeCans
Regulatory requirements
Safety RegulationsNEC Class I, Div. 1, Groups C&D- IECEx
Other technical features
Transport systemRotary
Value proposition
Value propositionPerformance
