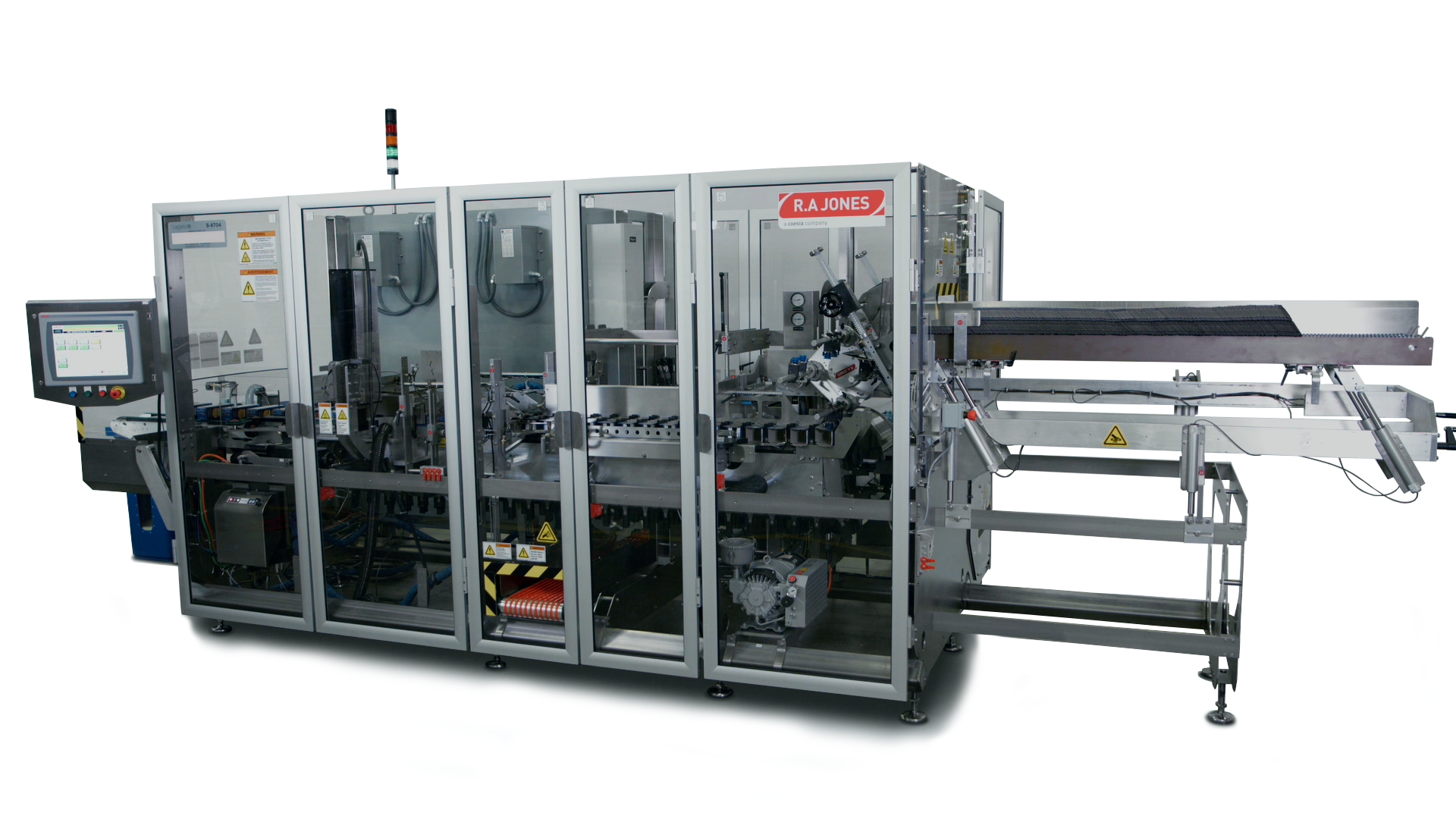

Criterion® CMI-160

Medium-large center, intermittent end load cartoner (Up to 160 cpm)

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Food, Pet Care
  • SEGMENT: Baby Food, Baked Goods, Biscuits & Crackers, Chocolate, Salt, Sugar & Spices, Bars, Snacks, Pet Food

Detailed Info

Footprint
Machine depth (mm)4500
Machine height (mm)2120
Machine length (mm)6530
Machine weight (kg)4500
Other technical features
Insertion modeEnd Load/Side Load
Performance
Operating modeContinuous
Product changeovern/a
More Information
Other infoExpands the Criterion® product line to include a compact footprint, direct load version. This intermittent motion cartoner integrates the product collator/transfer unit directly into main machine frame, eliminating the need for bucket conveyor. It operates intermittently by opening, loading and closing two or more cartons per cycle. Machine Centers: 4", 6" & 12".
Packaging range
Max pack height (mm)254
Min pack height (mm)130
Max pack length (mm)254
Min pack length (mm)50
Max pack width (mm)114
Min pack width (mm)32
Packaging features
Packaging closingGlue
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionPerformance
