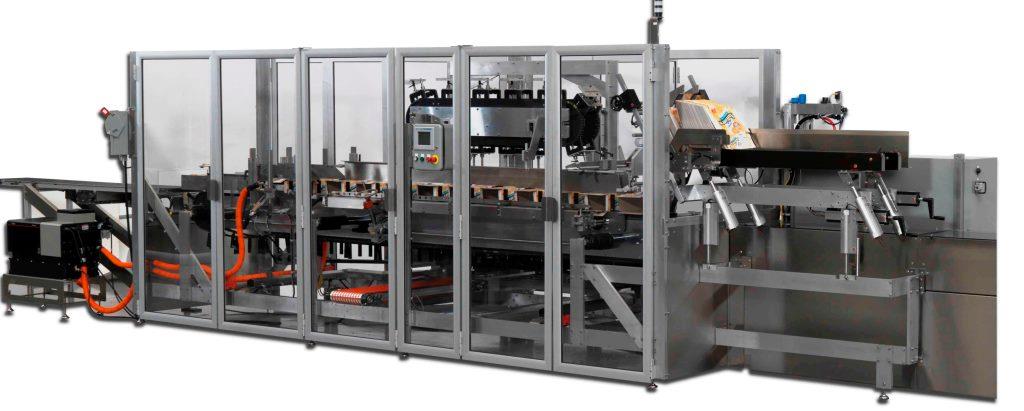

Legend® CL-160

Large center, medium speed end load cartoner (Up to 160 cpm)

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Food
  • SEGMENT: Cereals, Bars, Snacks, Baked Goods, Biscuits & Crackers

Detailed Info

Footprint
Machine depth (mm)2300
Machine height (mm)2060
Machine length (mm)6600
Machine weight (kg)6000
Other technical features
Insertion modeEnd Load/Side Load
Performance
Operating modeContinuous
Product changeovern/a
Size changeover20 - 30 min (3-D changeover)
More Information
Other infoExpands the proven large center product line to include a lower cost, mechanically driven end load cartoner. Machine Centers: 9", 12".
Packaging range
Max pack height (mm)368
Min pack height (mm)130
Max pack length (mm)254
Min pack length (mm)108
Max pack width (mm)111
Min pack width (mm)32
Packaging features
Packaging closingGlue
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionFlexibility
