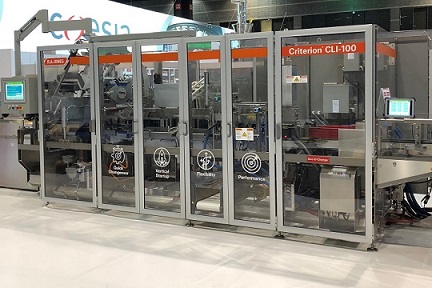

Large center (12 pitch) intermittent motion end load cartoner (Up to 100 cpm)

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Food, Home Care
  • SEGMENT: Baked Goods, Snacks, Other Home Care

Detailed Info

Machine depth (mm)2300
Machine height (mm)2200
Machine length (mm)5600
Machine weight (kg)6000
Other technical features
Insertion modeEnd Load
Operating modeIntermittent
Product changeoverN/A
Size changeover10-20 min
More Information
Other infoExpands the Criterion® product line to include an intermittent motion version to provide even more flexibility for running different types of products and a wide range of carton sizes. CLI/CMI Series cartoner has a compact footprint to fit in those tight spaces on your packaging floor. It also uses the latest technology to control all critical machine functions providing maximum flexibility, performance and reliability. Multiple types of product collation and transfers are available for this machine, including our IndeCart® 3 variable pitch bucket transport for flexible and efficient product control.
Packaging range
Max pack height (mm)304
Min pack height (mm)108
Max pack length (mm)254
Min pack length (mm)127
Max pack width (mm)152
Min pack width (mm)25
Packaging features
Packaging closingGlue
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton Box
Value proposition
Value propositionFlexibility
Attached Files
RA Jones Criterion CLI Series IM Cartoner Brochure.pdfDOWNLOAD
