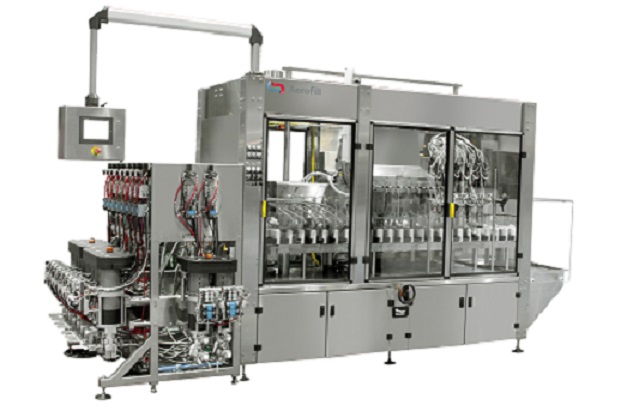

KP-Aerofill AM-160

Indexing machine for complete aerosol packages with quick-changeover (160 ppm)

Basic Info

  • TECHNOLOGY: Aerosol Filling
  • INDUSTRY: Home Care, Personal Care, Food, Dairy, Chemicals
  • SEGMENT: Air Care, Home Insecticides, Laundry Care, Other Home Care, Deodorants, Fragrances, Hair Care, Men's Shaving, Skin & Sun Care, Oils & Fats, Other Food, Spreads, Cheese, Coatings & Sealants, Lubricants, Other Chemicals

Detailed Info

Footprint
Machine depth (mm)5789
Machine height (mm)2983
Machine length (mm)8853
Machine weight (kg)5500
Technical data
Dial pitch (mm)0
Max immersion time0
Min immersion time0
Number of heads6
Tank capacity (l)0
Exclusivity
Exclusivity agreement details0
Product range
Max filling volume (ml)400
Min filling volume (ml)0
Max product viscosity (cps)15000
Production environment
Hazard ratingATEX; NEC Class I, Div. 1, Groups C&D
Environment typeExplosive vapors
Performance
Operating modeIntermittent
Product changeover30 - 60 min
Size changeover10 min
Packing range
Max pack diameter (mm)65
Min pack diameter (mm)35
Packaging range
Max pack height (mm)320
Min pack height (mm)80
Packaging features
Packaging materialMetal
Packaging ShapeRound
Packaging typeCans
Regulatory requirements
Safety RegulationsATEX- NEC Class I, Div. 1, Groups C&D
Other technical features
Transport systemOval index
Value proposition
Value propositionFlexibility
