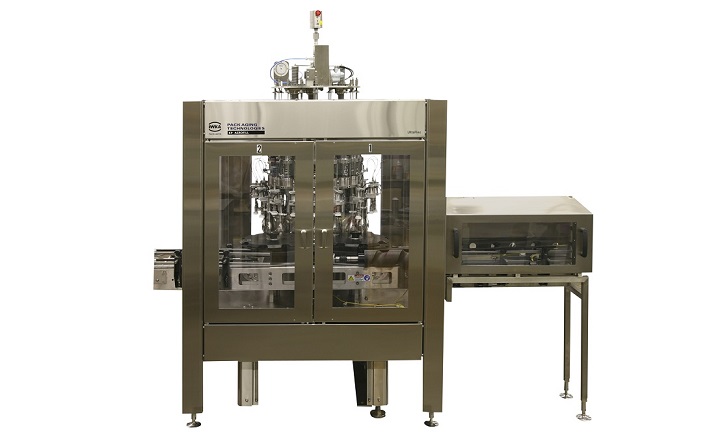

KP-Aerofill AG-275

Medium speed rotary gasser/shaker with 12 or 18 heads (275 ppm)

Basic Info

  • TECHNOLOGY: Aerosol Filling
  • INDUSTRY: Food, Dairy
  • SEGMENT: Oils & Fats, Other Dairy

Detailed Info

Footprint
Machine depth (mm)2012
Machine height (mm)2743
Machine length (mm)2848
Machine weight (kg)3410
Technical data
Dial pitch (mm)781
Max immersion time0
Min immersion time0
Number of heads18
Tank capacity (l)99999
Exclusivity
Exclusivity agreement details0
Product range
Max filling volume (ml)550
Min filling volume (ml)4
Max product viscosity (cps)5000
Production environment
Hazard ratingNEC Class I, Div. 1, Groups C&D
Environment typeWashdown, explosive vapors
Performance
Operating modeContinuous
Product changeover10 - 60 min
Size changeover15 - 60 min
Packing range
Max pack diameter (mm)76
Min pack diameter (mm)35
Packaging range
Max pack height (mm)254
Min pack height (mm)127
Packaging features
Packaging materialMetals, Plastics
Packaging ShapeRound
Packaging typeCans
Regulatory requirements
Safety RegulationsNEC Class I, Div. 1, Groups C&D
Other technical features
Transport systemRotary
Value proposition
Value propositionPerformance
