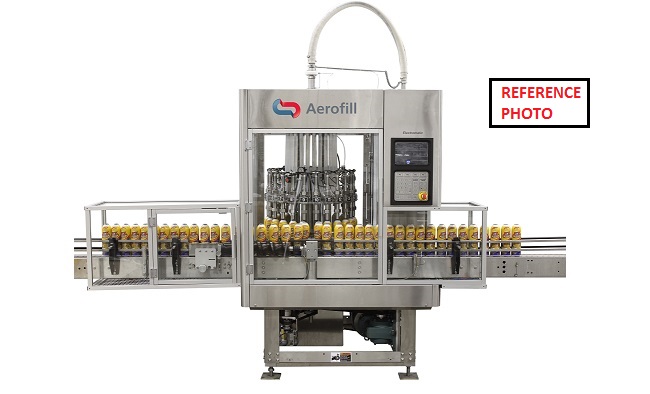

KP-Aerofill AE-600

Timed-orifice liquid filler - 6, 12, 18 and 24 heads (600 ppm)

Basic Info

  • TECHNOLOGY: Aerosol Filling
  • INDUSTRY: Home Care, Personal Care, Food, Dairy, Chemicals
  • SEGMENT: Home Insecticides, Laundry Care, Other Home Care, Deodorants, Fragrances, Hair Care, Men's Shaving, Skin & Sun Care, Oils & Fats, Other Dairy, Coatings & Sealants, Lubricants, Other Chemicals, Air Care

Detailed Info

Footprint
Machine depth (mm)1219
Machine height (mm)2921
Machine length (mm)2672
Machine weight (kg)1045
Technical data
Dial pitch (mm)648
Max immersion time0
Min immersion time0
Number of heads12
Tank capacity (l)99999
Exclusivity
Exclusivity agreement details0
Product range
Max filling volume (ml)1000
Min filling volume (ml)1
Max product viscosity (cps)2500
Production environment
Hazard ratingNEC Class I, Div. 1, Groups C&D
Environment typeExplosive vapors, wipedown
Performance
Operating modeContinuous
Product changeover15 - 60 min
Size changeover5 - 30 min
Packing range
Max pack diameter (mm)76
Min pack diameter (mm)35
Packaging range
Max pack height (mm)305
Min pack height (mm)51
Packaging features
Packaging materialMetals, Plastics
Packaging ShapeRound
Packaging typeCans
Regulatory requirements
Safety RegulationsNEC Class I, Div. 1, Groups C&D
Other technical features
Transport systemRotary
Value proposition
Value propositionPerformance
