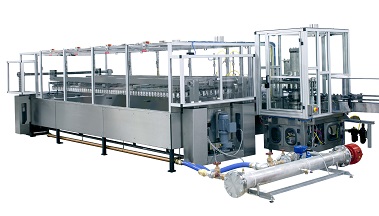

KP-Aerofill AB-250

Water test bath for Aerosol - available at 120 ppm, 160 ppm, and 250 ppm

Basic Info

  • TECHNOLOGY: Aerosol Filling
  • INDUSTRY: Home Care, Personal Care, Food, Dairy, Chemicals
  • SEGMENT: Air Care, Home Insecticides, Laundry Care, Other Home Care, Deodorants, Fragrances, Hair Care, Men's Shaving, Skin & Sun Care, Oils & Fats, Cheese, Other Dairy, Coatings & Sealants, Lubricants, Other Chemicals
CONTACT US
AFTER SALES SERVICE

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)2919
Machine height (mm)2196
Machine length (mm)7336
Machine weight (kg)4641
Technical data
Dial pitch (mm)437
Max immersion time3
Min immersion time3
Number of heads18
Tank capacity (l)4940
Exclusivity
Exclusivity agreement details0
Product range
Max filling volume (ml)1062
Min filling volume (ml)77
Max product viscosity (cps)0
Production environment
Hazard ratingATEX
Environment typeExplosive vapors
Performance
Operating modeContinuous
Product changeover0
Size changeover20 - 30 min
Packing range
Max pack diameter (mm)65
Min pack diameter (mm)35
Packaging range
Max pack height (mm)320
Min pack height (mm)80
Packaging features
Packaging materialMetal
Packaging ShapeRound
Packaging typeCans
Regulatory requirements
Safety RegulationsATEX
Other technical features
Transport systemRotary
Value proposition
Value propositionPerformance
