KP-Aerofill AB-500 - Aerosol Filling
KP-Aerofill AB-500 - Aerosol Filling
KP-Aerofill AB-500 - Aerosol Filling
KP-Aerofill AB-500 - Aerosol Filling

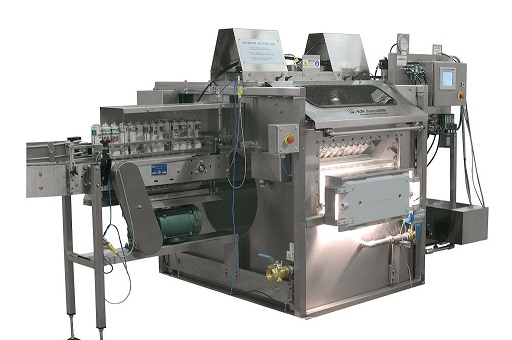

KP-Aerofill AB-500

Water test bath, rotary drum style, 3, 5, 7.5 and 12 foot lengths (500 ppm)

Basic Info

  • TECHNOLOGY: Aerosol Filling
  • INDUSTRY: Home Care, Personal Care, Food, Dairy, Chemicals
  • SEGMENT: Air Care, Other Home Care, Home Insecticides, Laundry Care, Deodorants, Fragrances, Hair Care, Men's Shaving, Skin & Sun Care, Oils & Fats, Cheese, Other Dairy, Coatings & Sealants, Lubricants, Other Chemicals
CONTACT US
AFTER SALES SERVICE

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)1372
Machine height (mm)1755
Machine length (mm)3962
Machine weight (kg)1200
Technical data
Dial pitch (mm)538
Max immersion time3
Min immersion time1
Number of heads15
Tank capacity (l)800
Exclusivity
Exclusivity agreement details0
Product range
Max filling volume (ml)855
Min filling volume (ml)70
Max product viscosity (cps)0
Production environment
Hazard ratingNEC Class I, Div. 1, Groups C&D
Environment typeExplosive vapors
Performance
Operating modeIntermittent
Product changeover0
Size changeover5 - 10 min
Packing range
Max pack diameter (mm)66
Min pack diameter (mm)35
Packaging range
Max pack height (mm)254
Min pack height (mm)76
Packaging features
Packaging materialMetal, Plastic, Glass
Packaging ShapeRound
Packaging typeCans
Other technical features
Transport systemRotary
Value proposition
Value propositionPerformance
