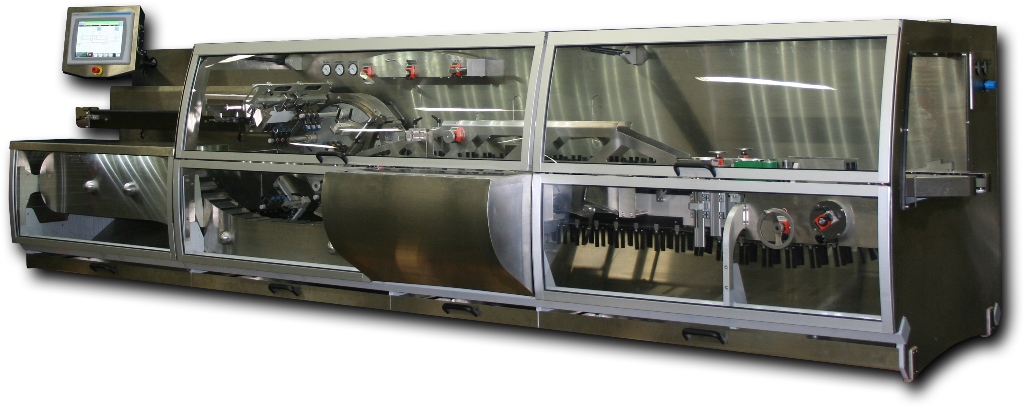

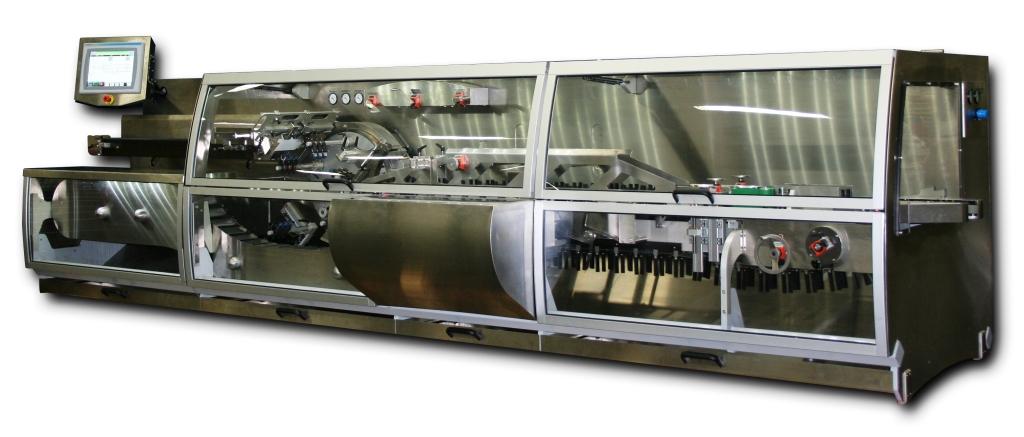

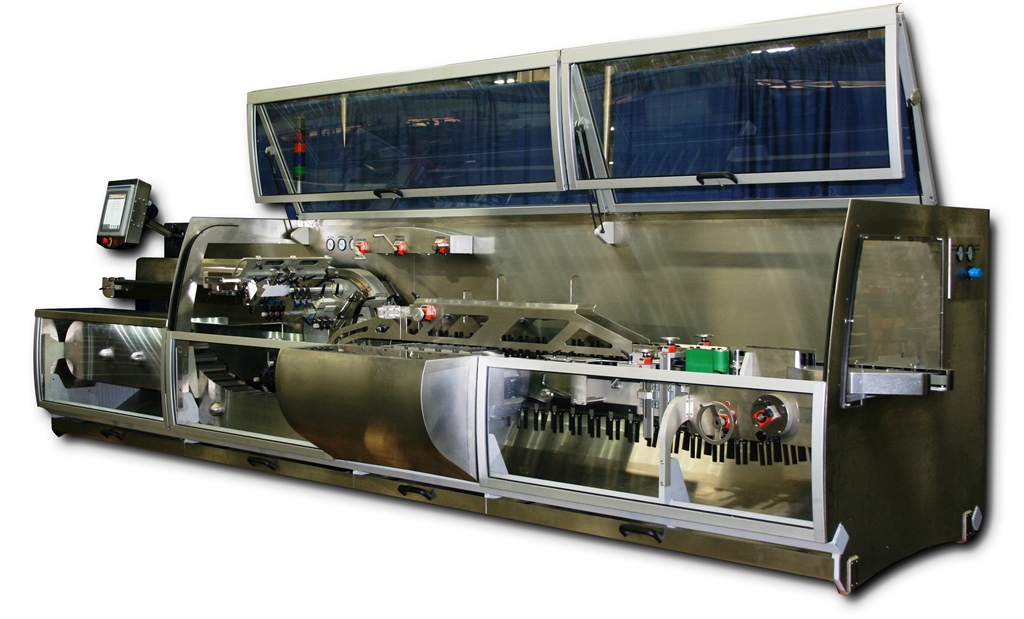

Legacy® CS-400

Small center, high speed end load cartoner for small-medium formats (Up to 400 cpm)

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Pharma & Healthcare, Home Care, Personal Care, Tissue & Hygiene
  • SEGMENT: Medical Devices, Optical, Other Pharma & Healthcare, Injectables, Ophthalmic, Other Prescription Applications, Air Care, Other Home Care, Home Insecticides, Laundry Care, Cosmetics, Deodorants, Fragrances, Hair Care, Men's Shaving, Skin & Sun Care, Liquid Soaps, Other Oral Care, Feminine Hygiene, OTC
CONTACT US
AFTER SALES SERVICE

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)1900
Machine height (mm)1580
Machine length (mm)5500
Machine weight (kg)3500
Other technical features
Insertion modeEnd Load/Side Load
Performance
Operating modeContinuous
Product changeovern/a
Size changeover15 - 20 min (3-D changeover)
More Information
Other infoThe Legacy® CS-400 cartoner was redesigned from the ground up, with a significant amount of customer input, to be the most productive, completely equipped, competitively priced, ergonomically friendly, multi-purpose small center cartoner in the industry. Machine Centers: 4" & 6".
Packaging range
Max pack height (mm)203
Min pack height (mm)64
Max pack length (mm)127
Min pack length (mm)13
Max pack width (mm)89
Min pack width (mm)13
Packaging features
Packaging closingGlue
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionPerformance
Attached Files
Legacy CS-400 BrochureDOWNLOAD
Video
Legacy CS-400WATCH
